The Phase II Language for the Hobby·Eberly Telescope

Niall I. Gaffney
Hobby·Eberly Telescope, RLM 15.308 University of Texas, Austin, TX 78712, Email:

Mark E. Cornell
McDonald Observatory, RLM 15.308 University of Texas, Austin, TX 78712, Email:



We describe our recent software effort to enable queued observations on the Hobby·Eberly Telescope. For the past year, we have worked on development and implementation of a ``Phase II'' style observation submission and execution system. We have developed a language in which investigators can describe their observations, a simple method for submission, and tools to execute observations. We discuss the special features of this language that were implemented to accommodate some of the unique characteristics of the Hobby·Eberly Telescope.


1. Introduction

The Hobby·Eberly Telescope (HET) (Sebring & Ramsey 1994) is a 9.2 meter optical telescope currently undergoing scientific commissioning in west Texas. The telescope is operated by McDonald Observatory on behalf of the HET consortium[*]. Once fully operational, this telescope will operate in a queue scheduled, service observing mode 85% of the time.

What distinguishes the HET from other optical telescopes is its fixed elevation of $55\deg$. The telescope acquires and tracks an object by rotating in azimuth and moving an Arecibo-style tracker mechanism across the focal surface. While this procedure allows the HET to access over 70% of the sky over the course of the year, each object is only observable for approximately 1 hour once or twice a night. We therefore maximize the productivity of this telescope with queue scheduled service observing. To facilitate queue scheduling, we have constructed a scripting language in which investigators can describe their observations in familiar astronomical terms. Using these observing scripts, the HET Operations Staff can build a queue of observations and then execute the observations as required by the investigator.

2. The Phase II Language

Because of the wide variety of computers in use by our investigators, we needed to develop a platform-independent Phase II system. We chose to use a text-based system of keywords and parameters for the language. These keywords are contained within modular ``templates'', each of which represent a simple observational concept. These templates are:

The investigator is able to specify details such as which dates and times are acceptable for the observations, what observing conditions are acceptable, how periodic or phase critical observations are to be carried out, and what the relative priority of different parts of the project are to the overall scientific goal. All of this information is specified in terms familiar to an astronomer with concepts similar to what one would tell an experienced observer unfamiliar with the specifics of the project.

Each template can be called many times from within one plan or from multiple plans, saving the investigator from having to make multiple entries for the same object or instrument setup. In addition to this reusability, we have implemented macros to reduce repetitive typing. Recursive macro calls also allow the user to create complex plans with minimal typing. Details of the language are further described in the Phase II manual .

Table 1: An example object template (left) and plan (right). Lines preceded by the ``#'' character are comments.
begin_object: SAO10 begin_plan: SAO10
   description: protogalaxy    instrument: lrs_setup1
   ra: 00:04:45    constraint: very_good
   dec: +22:43:26    class: required
   equinox: J2000    # starts on the 18th of November
   pa: 142.3    # ±3.5 days
   ra_offset: 10.3    utdate_start: 18/11/1997 delta 3 12:00
   dec_offset: -23.4    do-flat: 50 5
   # magnitude of acquisition object     do-object: SAO10 800 scaled 2
   v: 12.4    do-lamp: ThAr 10 5
   # flux of object    schedule-dark: 500 5
   flux 8300 continuum 21.4    schedule-calibrator: bluestar 50 fixed 1
   rv: 430.3    # wait 3 ±1 days
   finding_chart:    schedule-wait: 3 delta 1
end_object:    do-object: SAO10 800 scaled 2

3. Unique Features

Because of the constrained motion of the HET, we needed to develop two unique features for our Phase II language. The first of these is how one requests an observation to be done. One can do an observation, which means that the observations are to be executed in the given sequence with no other observations intervening. Alternately one can schedule an observation. This allows the HET queue to place that observation at any time in the night that is convenient and allows other observations (possibly from other investigators) to take place during the interim. The plan in the right column of Table 1 demonstrates both of these commands. The sequence of ``do'' commands require that a flat lamp be taken immediately before and a wavelength calibrator be taken immediately after the observations of the object. The first two ``schedule'' commands allow the HET Operation staff to make those observations at any time in the night. The schedule-wait command tells the observer to wait for a period of time, allowing other observations to take place during the interim.

The second new feature allows the investigator to give either static or dynamic integration times. As the HET tracks an object across its 11 meter primary mirror, the 9.2 meter beam becomes vignetted. This vignetting is a function of the location of the object on the sky, the time the object was acquired, the length of the track, and the azimuth of the telescope. Because the investigator will typically not know when his/her observation will be scheduled, we allow the investigator to either describe an exposure time that will scaled according to this vignetting function and the observing conditions at the start of the exposure, or to statically set the integration time (e.g., if the exposure is time critical). Exposure time scaling is done to conserve the signal-to-noise ratio of the observation based on the vignetting function and estimates of the atmospheric transmission and seeing losses.

4. Plan Submission and Execution

Once plans are created by the investigator, they are e-mailed to the HET Operations Team in Austin. Upon receipt, the plans are automatically validated using a procmail-type validation system. Approved plans are then written to disk where, at a fixed time each day, any changes and additions are compiled into the HET Observation relational database. This database is a Starbase database (Roll 1996) to which we have added some new HET-related calculations.

The database is transfered over the Internet to the HET site at the beginning of each night. The database will then be used by the resident astronomer to schedule plans throughout the night (Gaffney & Cornell 1997). When a scheduled target becomes observable, the plan is loaded into the plan execution tool (Figure 1). This tool displays the relational database information in an easy-to-digest GUI format. This GUI sends coordinates to the telescope control system and creates macros to be executed on the instrument control systems (ICS) to acquire the data. When the data is written to disk by the ICS, this tool logs the data as being acquired, appends comments to and fixes up the FITS headers to match the standard header format for the HET, moves the data to the correct directory, and queues the data for backup and transfer to Austin.

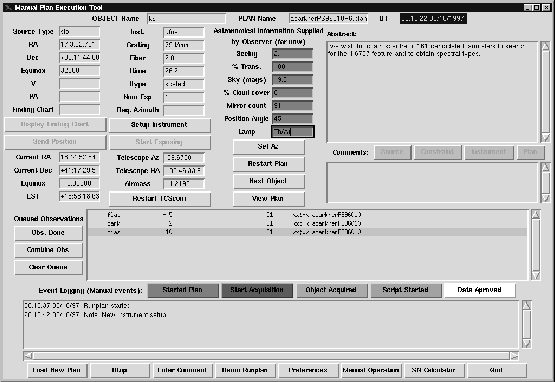

Figure 1: The plan execution tool reads in plan files and coordinates the observations with the other subsystems.



Gaffney, N. I., & Cornell, M. E. 1997 in Astronomical Data Analysis Software and Systems VI, ASP Conf. Ser., Vol. 125, eds. Gareth Hunt and H. E. Payne (San Francisco, ASP), 379

Roll, J. 1996, in Astronomical Data Analysis Software and Systems V, ASP Conf. Ser., Vol. 101, eds. G. H. Jacoby and J. Barnes (San Francisco, ASP), 536

Sebring, T. A., & Ramsey, L. W. 1994, in Advanced Technology Optical Telescopes V, SPIE Tech Conf. 2199


The HET consortium members are The University of Texas at Austin, The Pennsylvania State University, Stanford University, Ludwig-Maximilians-Universität München, and Georg-August-Universität Göttingen.
